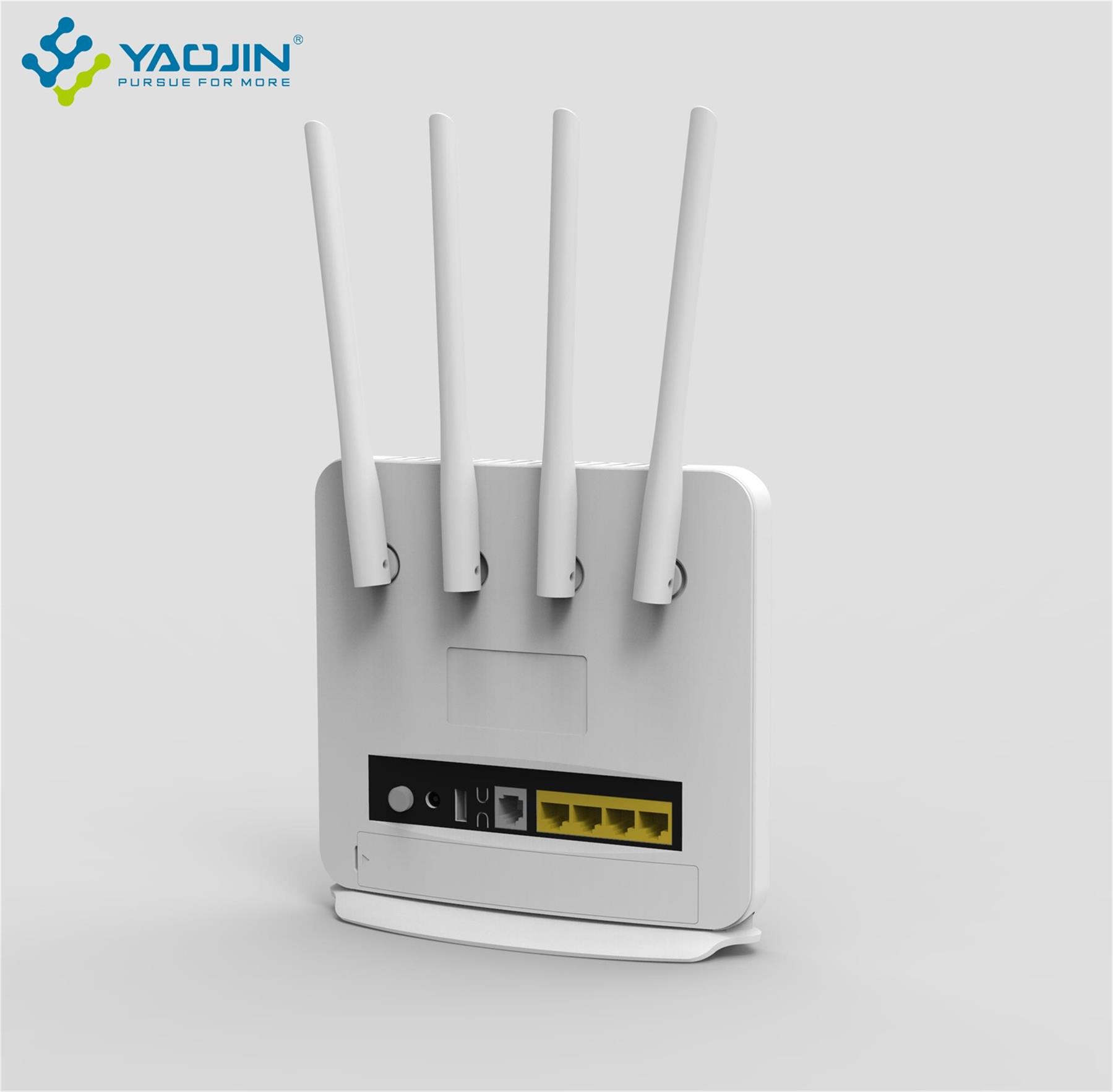

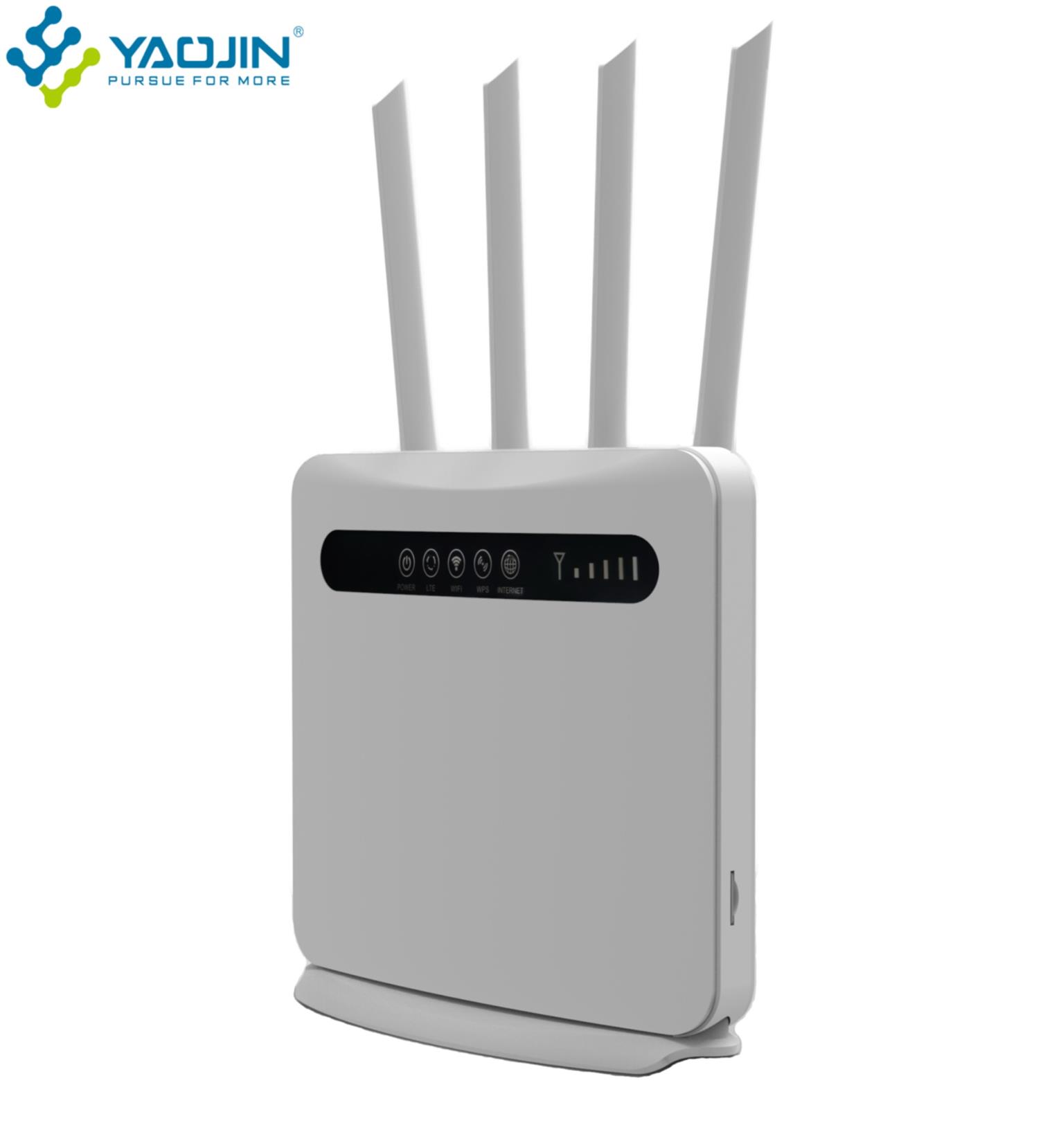

LTE CAT6 CAT12 Indoor CPE Router

item

A390AC-EAU-30 (CAT6)

A390AC-EAU-30 (CAT12)

WCDMA

Band 1/3/5/8

Band 1/3/5/6/8/19

FDD-LTE

Band 1/3/5/7/8/18/19/20/28/32

Band 1/3/5/7/8/18/19/20/28/32

TDD-LTE

Band 38/40/41(2535Mhz-2655Mhz)

/42/43/48

Band38/40/41(2535Mhz~2655Mhz) /42/43/48

item

A390AC-EAU-30 (CAT6)

A390AC-EAU-30 (CAT12)

WCDMA

Downlink peak rate 42Mbps

Downlink peak rate 42Mbps

Uplink peak rate 5.76Mbps

Uplink peak rate 5.76Mbps

LTE

Downlink peak rate 300Mbps

Downlink peak rate 600Mbps

Uplink peak rate 50Mbps

Uplink peak rate 150Mbps

Downlink 4 x 4 MIMO

Downlink 4 x 4 MIMO

item

A390AC-EAU-30 (CAT6)

A390AC-EAU-30 (CAT12)

WCDMA

Support 3GPP R9/DC-HSDPA/HSPA+/

HSDPA/HSUPA/WCDMA

Support 3GPP R9/DC-HSDPA/HSPA+/

HSDPA/HSUPA/WCDMA

LTE

Support 3GPP R12

Support 3GPP R12

Support max 2DLCA

Support max 3DLCA、2ULCA

Support  Downlink 64QAM、16QAM、QPSK

Support  Downlink 256QAM、64QAM、

16QAM、QPSK

Support Uplink 16QAM、QPSK

Support Uplink 64QAM、16QAM、QPSK

Support RF bandwidth1.4MHz~20MHz

Support RF bandwidth 1.4MHz~20MHz

Main chip

Qualcomm SDX12

USIM Slot

1.8V/3.0V USIM

Storage

2Gb LPDDR2 + 2Gb NAND Flash

Supported Operating Systems

Linux/Android/Windows

Power level

Class 3 (23.5dBm ± 2dB) for WCDMA bands

Class 3 (23dBm ± 2dB) for LTE bands

wifi

802.11 b/g/n/ac 2.4G+5.8G (1300Mbps)

Network port type

RJ45 x 4, LAN 10/100/1000 aotu-sensing

Voice chip

LE9643

The power adapter

DC Power  12V/1A

SIM slot

1.8v/3.3V USIM

Standard

IEEE 802.11 b/g/n/ac

Channel Bandwidth

20MHz,40MHz,80MHz

Frequency

2.4G/5.8G

TXRX

2T2R

MIMO

DL 2 x 2 MIMO

Rate

802.11b:11Mbps

802.11g:54Mbps

802.11n:300Mbps

802.11ac:866Mbps

Modulation

DSSS/CCK,OFDM

Antenna Type

Internal Antenna

Antenna Gain

1.5~2dBi

Active User

64
